Your issues
• You need a higher throughput capacity
• Your process is not fast enough
• Your laser system reaches its limits
PM Unit
Surface treatment
Modification
Cleaning
LIDAR
Measurement
Microstructuring
Drilling
Perforating
2.5D Engraving
LIFT
Product overview
MOEWE’s polygon mirror unit (PM unit) is a customer configurable polygon mirror with a motor and a driver. The PM unit is designed as a cost-efficient, high speed
beam deflection unit for the integration in individual. operation environment. The PM unit stands out with free selectable aperture up to 20 mm and individual number of polygon facets. The nominal drive is able to run up to 5,000 rpm. Other speed or individual specs on request.
Application: universal, OEM (LIDAR, Cleaning, Measurements)
Special feature: Polygon wheel can be flexibly designed
Power range: Customer-specific, diameter up to 90 mm
Aperture: up to 20 mm
Processing mode: CW + pulsed + ultra short pulsed
Your advantages
- Individual number of facets
- Free aperture up to 20 mm
- Ultra-fast scan speeds on the entire scan length (no acceleration loss)
- Easy to integrate
- Double-sided bearing
- Custom design

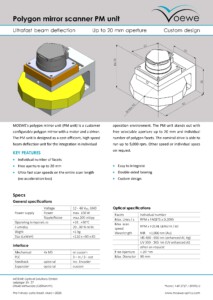

Datasheet PM Unit
What our clients say
I’m very satisfied with high robustness of PM-300, and in specially, strong and kind custom support for our process.
</span>Extremely fast deflection and precision of the polygon scanner compared to other scaners is remarkable. Very good customer support, quick assistance and satisfied with everything so far.
MOEWE solution completely new markets for laser machining can be opened up and will be an innovation leader frawing global attentionin the hig-end filed.
Very good performance product, active & kind supports, detailed and well-made manual of product.
Supported by
What a typical cooperation with us looks like
Direct customer inquiry via the website, by mail or via phone.
Clarification of detailed customer needs, the process and technological approach.
An offer is prepared by sales department.
If no questions left, customer places an order.
Payment agreement about down and final payment.
<ul>
<li>Our turn: Production,calibration and shipment</li>
<li>Customer can easily integrate the Scanner on its own</li>
</ul>
Training on our polygon scanner on MOEWE site in Mittweida/Germany or as an online course.
Follow-up on specific requests possible, usually by mail, via phone or online meeting, if necessary.
